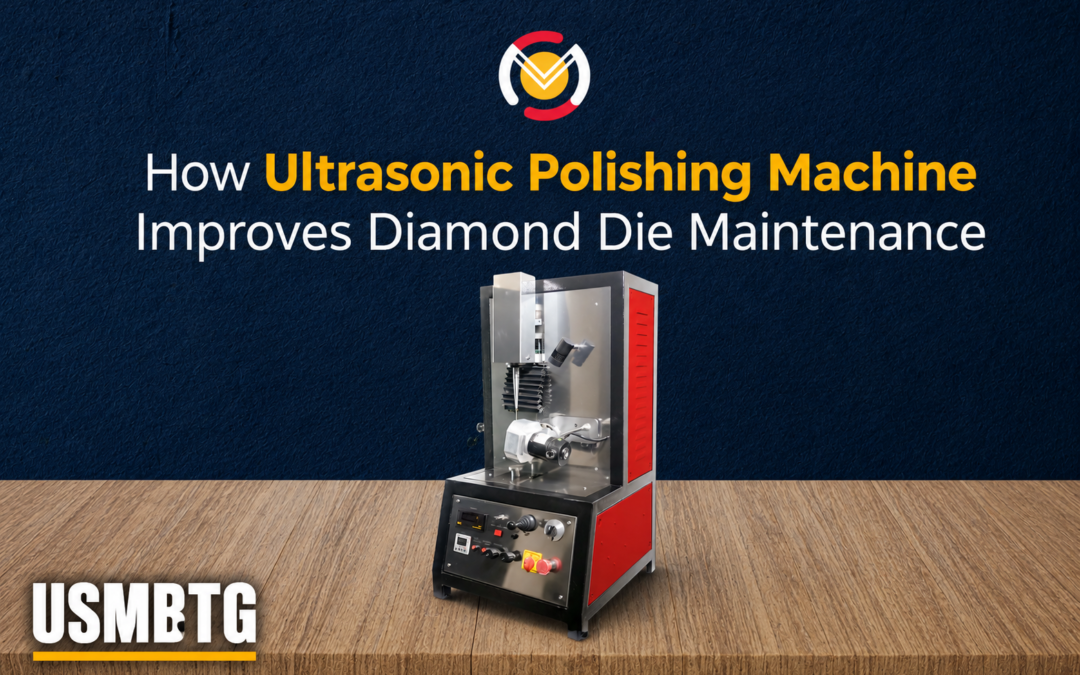

How Ultrasonic Polishing Machine Improves Diamond Die Maintenance

An Ultrasonic Polishing Machine helps manufacturers resize and re-polish diamond dies with better control, smoother finishing, and repeatable die angles.

For wire drawing manufacturers, this machine helps restore worn PCD, Natural Diamond Dies (ND), and SSCD diamond dies and improve die life without frequent replacement.

Key points:
1. An Ultrasonic Polishing Machine helps re-polish and resize diamond dies.

2. The machine supports PCD, Natural, and SSCD diamond dies.

3. USMBTG 250 handles die sizes from 0.100 mm to 2.5 mm.

4. USMBTG 300 handles die sizes from 0.100 mm to 8.0 mm.

5. Motorised movement, die rotation, oscillation, and magnetic pressure improve polishing control.

In wire drawing, die quality has a direct impact on wire quality. A worn die can change the wire size. A rough die hole can affect the finish. A poor die angle can increase friction during drawing.

This is why manufacturers need a controlled way to resize and re-polish diamond dies. Manual polishing depends heavily on skill and experience. A dedicated Ultrasonic Polishing Machine gives the operator better control over movement, pressure, rotation, and finishing.

The USMBTG 250 and USMBTG 300 machines are designed for resizing and re-polishing PCD, Natural, and SSCD diamond dies. These machines help restore die geometry, improve die hole finish, and support accurate die angles repeatedly.

For B2B manufacturers, the need is simple. A good die maintenance process helps reduce production interruptions, improve die life, and maintain better wire drawing consistency.

Manufacturers need an Polishing Machine because diamond dies wear over time. Once wear begins, wire quality may drop, machine stoppages may increase, and die replacement costs may rise.

1. Die wear affects production: A worn die can affect wire diameter, surface finish, and roundness. These small changes can create rework and quality checks during production.

2. Manual polishing has limits: Manual die polishing depends on operator skill. Results may vary when the die size is small or when accurate die angles are required.

3. Controlled polishing improves consistency: An Ultrasonic Polishing Machine gives the operator a structured process. The machine supports controlled vibration, die rotation, oscillation, and pressure.

For manufacturers handling diamond dies regularly, this machine becomes a practical part of die maintenance. The goal is to recover die performance with better repeatability.

An Ultrasonic Die Polishing Machine uses high-frequency ultrasonic vibration to support controlled die resizing and polishing. The machine combines ultrasonic action with die rotation and oscillation to improve the die hole and die angle.

The system mainly consists of an ultrasonic generator, rotating ultrasonic head, oscillating die table, and built-in needle grinder. Each part supports a specific stage of die finishing.

1. Ultrasonic generator: The ultrasonic power generator produces ultrasonic energy for machining. USMBTG 250 uses a 250W generator, while USMBTG 300 uses a 300W ultrasonic power generator.

2. Rotating ultrasonic head: The rotating head helps maintain uniform polishing across the die hole. This supports smoother finishing and better repeatability.

3. Oscillating die table: The oscillating table adds controlled movement during polishing. This helps improve the surface finish and die profile.

4. Built-in needle grinder: The needle grinder supports accurate die hole work. This helps the operator manage resizing and polishing requirements with better control.

Together, these features make the Ultrasonic Machine useful for precision die maintenance.

Research on ultrasonic vibration-assisted grinding shows how ultrasonic vibration can support better machining of advanced hard materials by improving surface quality and tool wear control.

USMBTG 250 and USMBTG 300 are useful because both machines are designed for resizing and re-polishing diamond dies. The model selection depends on die size range and production requirement.

1. USMBTG 250: This model supports a die size range from 0.100 mm to 2.5 mm. It comes with a 250W ultrasonic generator and 600 mA maximum current.

2. USMBTG 300: This model supports a wider die size range from 0.100 mm to 8.0 mm. It comes with a 300W ultrasonic generator and 1000 mA maximum current.

3. Common operating features: Both models work on a 240V input. Both operate at 22 kHz with plus or minus 10 percent frequency tolerance. Both include motorised head movement, 120 RPM die rotation, and die oscillation.

4. Stable machine build: Both models weigh 90 kg. This gives the machine a stable base for precision polishing and resizing work.

A manufacturer working with smaller dies may choose USMBTG 250. A manufacturer handling wider die sizes may choose USMBTG 300.

The Ultrasonic Polishing Machine improves die angle accuracy by combining controlled ultrasonic action, motorised movement, rotation, and magnetic die pressure. This helps the operator produce accurate die angles repeatedly.

1. Motorised upward movement: The upward movement of the die is motorised. This helps maintain steady motion during polishing and reduces dependence on manual pressure.

2. Magnetic die pressure: The die pressure is magnetic. This supports controlled contact between the polishing tool and the die.

3. Adjustable ultrasonic waves: The frequency and amplitude of ultrasonic waves are adjustable. The operator can set the machine based on die material, die condition, and finishing requirements.

4. Repeatable results: The machine supports repeated angle accuracy. This is important when manufacturers need consistency across different die sizes and batches.

For wire drawing manufacturers, die angle accuracy matters because the die controls wire movement, friction, and final output quality.

Studies on ultrasonic vibration-assisted polishing highlight how controlled ultrasonic movement can improve profile accuracy in precision finishing applications

This step is important because proper power transfer supports better polishing performance.

After needle fixing, the operator sets the machine based on the die requirement. The ultrasonic frequency and amplitude can be adjusted. The motorised die movement helps maintain controlled operation. Magnetic pressure helps manage contact during polishing.

The machine then uses ultrasonic vibration, die rotation, and oscillation to resize and polish the die hole. This process helps restore the required die profile and improve the internal surface finish.

For manufacturers, this journey is important because die maintenance needs control from the first step to the final finish. A structured machine process helps reduce variation and supports better repeatability.

An Ultrasonic Polishing Machine is mainly designed for PCD, Natural, and SSCD diamond dies. These dies are widely used in wire drawing applications where die life, surface finish, and accuracy matter.

The machine can also be used for machining round and conical holes in tungsten carbide, ceramic, and other hard metals. This makes the machine useful for manufacturers who handle different hard material applications.

PCD diamond dies: PCD dies are used across many wire drawing applications. The machine helps resize and re-polish these dies with better control.

Natural diamond dies: Natural diamond dies need careful handling because accuracy and finish are important. Controlled ultrasonic polishing supports better finishing.

SSCD diamond dies: SSCD dies are used where precision matters. An Ultrasonic Polishing Machine helps maintain the die profile and surface finish.

Hard metal applications: The machine can also support round and conical hole machining in tungsten carbide, ceramic, and similar hard materials.

This material range makes the machine useful beyond a single die type.

Buyers should check die size range, ultrasonic generator power, current capacity, die movement, die rotation, oscillation, pressure control, and accessory support before choosing an Ultrasonic Polishing Machine.

1. Die size range: The machine should match the die sizes used in production. USMBTG 250 suits smaller die sizes, while USMBTG 300 supports a wider range.

2. Power capacity: The ultrasonic generator power should match the polishing requirement. A higher generator capacity can support wider die requirements.

3. Movement control: Motorised movement helps improve process control. This is useful when repeatability matters.

4. Die rotation and oscillation: Rotation and oscillation support smoother finishing and better die hole polishing.

5. Accessory readiness: A complete accessory set helps the team begin work faster and manage regular maintenance more easily.

The right machine should match actual workshop needs instead of only looking at one specification.

Mikrotek provides USMBTG 250 and USMBTG 300 machines for resizing and re-polishing diamond dies. These machines are designed for PCD, Natural, and SSCD diamond dies.

The machines combine ultrasonic power, motorised movement, die rotation, die oscillation, magnetic die pressure, and built-in grinding support. This combination helps operators achieve accurate die angles and reliable finishing.

Mikrotek’s Ultrasonic Polishing Machine solutions are suitable for manufacturers who want a ready-to-use method for die maintenance. The machines help reduce dependence on manual polishing and support consistent workshop output.

For B2B buyers, Mikrotek offers a practical solution for improving die life, polishing accuracy, and wire drawing consistency.

The choice between USMBTG 250 and USMBTG 300 depends on the die size range and production requirement.

An Ultrasonic Polishing Machine helps manufacturers resize and re-polish diamond dies with better control, smoother finish, and repeatable angle accuracy. This improves die maintenance and supports better wire drawing performance.

USMBTG 250 is suitable for manufacturers working with smaller die sizes from 0.100 mm to 2.5 mm. USMBTG 300 is suitable for wider die sizes from 0.100 mm to 8.0 mm.

For manufacturers handling PCD, Natural, and SSCD diamond dies, a dedicated machine brings structure to the die maintenance process. Better die maintenance supports better die life. Better die life supports smoother production.

Mikrotek’s Ultrasonic Polishing Machine solutions help manufacturers manage this complete journey from die wear to restored performance.
